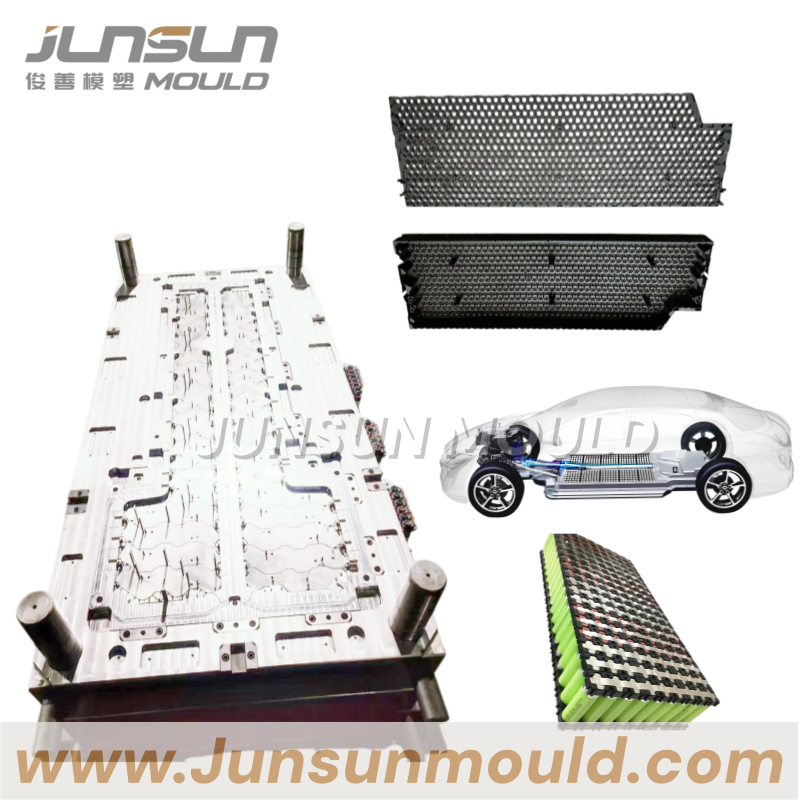

V Battery Bracket Mould Manufacturer: Precision Tooling for Reliable Energy Storage Systems

As electric vehicle (EV) adoption accelerates, the structural reliability of battery packs has become a key focus for automotive engineers. Among the critical components is the battery bracket – a part that secures battery cells, absorbs vibration, and maintains alignment under extreme conditions. For an EV Battery Bracket Mould manufacturer, the core challenge lies in delivering tooling that ensures dimensional precision, production efficiency, and long-term durability. This article focuses on the practical aspects of designing and manufacturing high-performance bracket moulds.

Designing for Manufacturability and Performance

A well-engineered EV Battery Bracket Mould begins with design-for-manufacturing (DFM) principles. Mould engineers must consider:

Product design analysis: Ribs, bosses, and mounting holes must be positioned to avoid stress concentrations while allowing smooth material flow.

Injection gate: Optimized gate placement prevents weld lines in critical load-bearing areas.

Ejection system: Balanced ejector pin layout ensures clean part release without distortion.

Using moldflow analysis, manufacturers simulate filling, packing, and cooling phases to predict shrinkage and warpage. This digital validation allows adjustments to cooling channel layout and wall thickness before steel is cut – reducing trial runs and accelerating time-to-market.



Material and Tooling Selection for High-Volume Production

Battery brackets are typically moulded from glass-fiber-reinforced polyamide (PA66+GF) or polyphenylene sulfide (PPS) for their mechanical strength and thermal stability. These materials, however, are abrasive and demand robust tooling solutions:

Steel grades: Cavities and cores should use wear-resistant materials like 2738,2433 or powder-metallurgy steels to withstand fiber abrasion over millions of cycles.

Surface treatment: Nitriding or PVD coating reduces friction and enhances release, minimizing part defects.

Hot-runner systems: Precise thermal control prevents material degradation at high melt temperatures.

A reliable EV Battery Bracket Mould must also feature conformal cooling system– ideally produced via additive manufacturing – to shorten cycle times and reduce thermal gradients that cause warpage.



Precision Machining and Quality Assurance

Achieving tolerances of ±0.05 mm requires advanced manufacturing capabilities:

5-axis CNC machining for complex cavity geometry.

Wire EDM for sharp internal corners and narrow slots.

In-process CMM inspection to verify critical dimensions at each stage.

Every EV Battery Bracket Mould undergoes rigorous validation, including trial runs with production-grade materials. Real-time pressure and temperature sensors capture process data, enabling fine-tuning of injection parameters to eliminate flash, short shots, or sink marks.



Why Choose an Experienced EV Battery Bracket Mould Manufacturer?

As a dedicated EV Battery Bracket Mould manufacturer, our expertise covers every stage:

DFM consultation for part optimization.

Advanced simulation and prototyping.

Ongoing technical support and spare parts services.

We understand that a robust EV Battery Bracket Mould directly contributes to battery pack integrity and vehicle safety. Our commitment to precision engineering and continuous innovation ensures our customers stay ahead in the competitive EV market.



For more information about our EV Battery Bracket Mould solutions, please contact our engineering team.
